P2 - Panel benders - Products - Salvagnini Group

Product overview

The P2 uses universal bending tools which automatically adapt in-cycle to the panel geometry, without machine down times or manual retooling, allowing batch-one or kit productions.

The technical solutions adopted (Direct Drive and pneumatic and electric actuators) allow the P2 to respect both people and the environment without reducing its productivity. The P2 runs with a minimum quantity of long-life oil, inside a fully sealed circuit.

The integrated adaptive technologies (advanced sensors, bending formula, MAC3.0) make the system intelligent and able to automatically adapt to changes in the material and the external environment, eliminating waste and corrections, and extending the range of products that can be made.

The proprietary LINKS, STREAM and OPS softwares establish communication between the system and the company departments involved in the production flow.

The P2 offers customized solutions, including auxiliary tools and additional devices for special geometries or different loading/unloading solutions with additional door (PIN2) or robot (PIN3).

 Flexible automation
 Sustainable technology
 Adaptive system
 Connectivity 4.0
 Product versatility
  • How does it work?

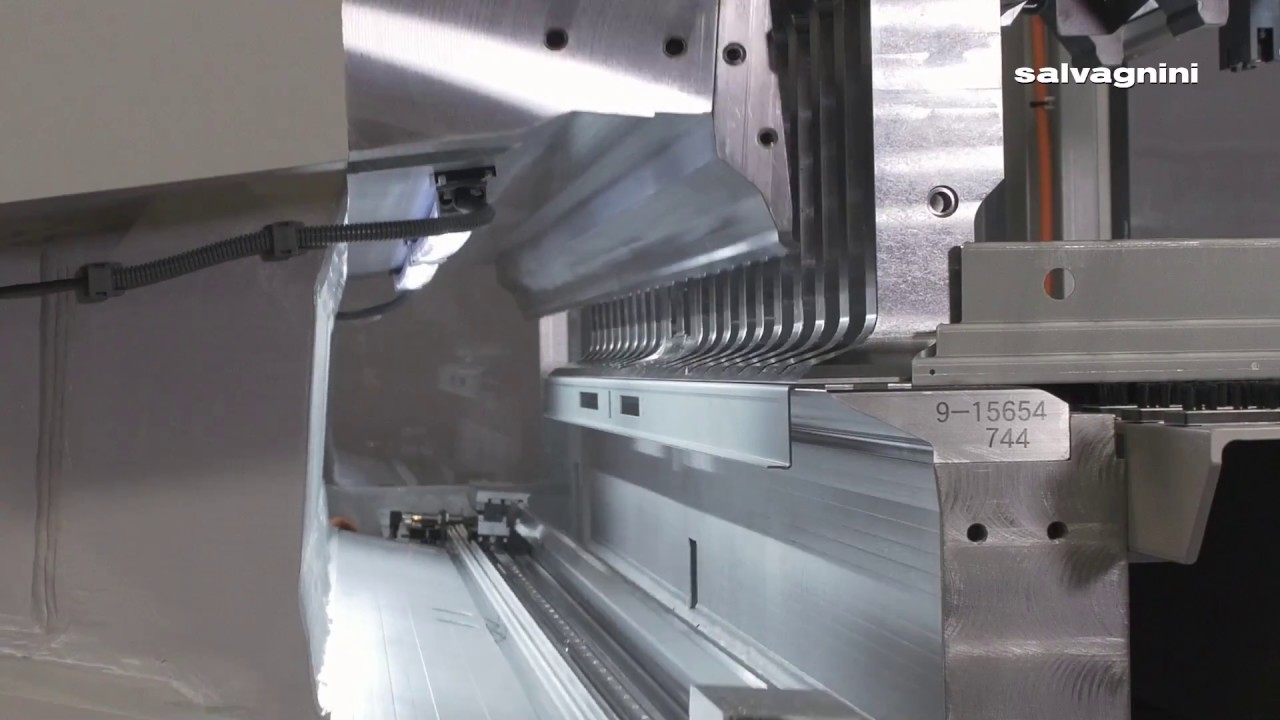

    Upper and lower blade, counterblade and blankholder are the four universal tools used to process the whole range of thicknesses and machinable materials, from 0.4 to 3.2 mm, during the cycle and without machine down times or manual re-tooling.

  • Operating mode: simple, quick and lean

    Bending on each side of the sheet is achieved thanks to the controlled interpolated movements of the blades.

  • Controlled centering

    The sheet metal is centered, just once at the start of the process, against controlled mechanical stops: the cycle time is minimized and any precision errors are all absorbed by the first bend. The mechanical stops are a further guarantee of finished panels of the correct size, every time.

  • Proprietary bending formula

    Developed over the years, the bending formula defines the force and manages the movements of the universal tools, analyzing different parameters in real time, including deflections, temperature and thickness, guaranteeing the precision, repeatability and quality of the finished product.

  • Ergonomics

    Regardless the size of the part to be bent, the P2 features the perfect ergonomic loading/unloading position for maximum operator comfort, allowing fast material handling while respecting humans.

  • P tool

    Optional, auxiliary tool to make narrow panels, tubular, hidden or radius bends, or bends with intrusive embossings.

  • CLA tools

    Optional, auxiliary blades, modular in length, available in both positive and negative versions, for making upward or downward tabs or bends that are shorter than the whole sheet length.

  • CUT

    Optional combination of a specific P tool and an auxiliary blade for automatic and sequential cutting of profiles of different lengths, materials, shapes and thicknesses. An unloading belt device on the bladeholder is used for manual unloading.

  • DPM manipulator

    Optional suction-cup device used to handle narrow parts, or frames without material, minimum width 105 mm. Used together with the specific P tool, it can produce panels up to 45 mm wide.

1 /

FACE

Intelligent design, intuitive and easy-to-use: FACE is the Salvagnini human-machine interface for the whole product range.

MAC3.0

MAC3.0 detects any differences in the mechanical characteristics of the material compared to their nominal value during the cycle, adapting the movements of the bending unit and the manipulator to compensate them.

Industry 4.0

Digital transformation and Industry 4.0 are key topics for staying competitive on the market. When adopted, they can implement and manage complex, integrated, highly automated high-performance systems, and can help to develop simple solutions that require no structural changes to the production layout, making the world of smart manufacturing much more accessible.

P-Robot

P-Robot is a new application combining a Salvagnini panel bender with a robot to produce kits, batches, and single parts autonomously.

  • Refrigerator door

    Find out how Salvagnini P2 bends a stainless steel refrigerator door of 0.8mm thickness in less than 50 seconds.

  • Elevator doors

    Find out how Salvagnini P2 bends a pair of galvanized elevator doors 1.5mm thick in little more than 60 seconds.

  • Door

    Find out how Salvagnini P2 bends galvanized steel doors 1.5mm thick in less than 60 seconds.

  • Case study: Metagro

    With the introduction of a P2 panel bender, Metagro's production efficiency has increased significantly, reducing programming, set-up, and manufacturing times. Last but not least, it improved employee working conditions.

  • Case study: Hefa

    Hefa Kühlmöbel's made-to-order, just-in-time batch-one manufacturing strategy made the most of a P2 panel bender, reducing the production time while increasing flexibility, accuracy, and repeatability.

  • Case study: Terschl

    The introduction of a new Salvagnini's P2 panel bender allowed Terschl to grow, increasing their flexibility, capacity, and variety of feasible parts.

  • Redesign

    Thanks to the accuracy and repeatability of its automated process - the universal bending tools do not require set-up times and automatically adapt to the geometry of the panel - the P2 bends panels with better design and outstanding quality.

  • Quick production changeover

    Thanks to the universal bending tools, which do not require set-up times and which automatically adapt to the geometry of the panel, the P2 features easy and quick production changeover.

1 /

Intelligent system, constant quality

Practically everything you ever wanted to know about the P2 panel bender, satisfactorily explained.

Productivity
Adaptivity
Precision

Conventional bending is characterized by an average OEE of 30%, with flexibility dependent on the tool change system - which is often costly and more time-consuming than on a panel bender - or on the installation of more than one press brake. The P2 panel bender, on the other hand, natively combines productivity, with its automatic bending and handling cycles, and flexibility, with its universal bending tools. And with its advanced cycles, the P2 completes an average of 17 bends per minute

The P2 doesn’t require re-tooling: the upper and lower blades, the counterblade and the blankholder are universal tools that are able to process the whole range of thicknesses and machinable materials.

Loading and unloading are performed by the operator, who positions the sheet metal on the worktable and collects the product after bending. The P2's cycle minimizes the impact of these activities on total cycle time, as it allows the product to be unloaded after positioning the sheet on the worktable, thus combining two operations in a single action.

The set-up has minimal impact on the panel bender's productivity: when the program is loaded, the blankholder automatically adapts in masked time, and the manipulator gets into position for gripping and handling the sheet.

The P2 is equipped with an automatic blankholder, which automatically adapts the length of the tool according to the size of the part to be produced, without the need for machine downtime or manual re-tooling even in-cycle: the ideal solution for batch-one and kit production.

MAC3.0 is the set of integrated technologies – sensors, formulas and algorithms – that make the panel bender intelligent: it eliminates waste and reduces corrections, measuring in-cycle and automatically compensating any variability in the material being machined.

The P2 integrates advanced sensors that measure the actual thickness and effective size of the part to be machined, and detects any deformations caused by variations in temperature. The data are fed in real time into the bending formula, which defines the correct force to apply to the sheet metal, guaranteeing the precision, repeatability and quality of the finished product.

In addition to the automatic ABA blankholder, the P2 offers a range of options to guarantee maximum versatility and adaptability, to suit any production strategy or mix.

The P2 can be equipped with proprietary OPS software, which ensures communication between the panel bender and the factory ERP: depending on needs, OPS manages the production of sequences of different parts. Universal bending tools, automatic in-cycle set-up and automatic handling allow the system to respond to any requests immediately.

The sheet metal is centered, just once at the start of the process, against controlled reference stops: this minimizes the cycle time as well as any precision errors, which are all absorbed by the first bend. The bending formula automatically optimizes the bending parameters to reduce waste, while MAC3.0 detects and automatically compensates any variability in the material to guarantee precise, high-quality bends.

Software

Industry has changed: flexibility and efficiency are fundamental requirements for managing increasingly smaller batches or rapid item turnover rate.  And developments in technology have in some way upset the balance between workloads, with increasingly fast systems which however need to be guided by more and more specific machine programs, the generation of which is increasingly time-consuming. This is why software is increasingly crucial to improving the efficiency of machinery.

STREAM is Salvagnini’s answer to the modern industrial context, a programming suite that improves reactivity and reduces costs, operating errors and process inefficiencies.

OPS is the Salvagnini modular production management software which optimizes the entire production process, exchanging real-time information between the machinery and the factory ERP/MRP.

Salvagnini’s IoT solution, increases the global efficiency of the panel bender. LINKS allows real-time monitoring of the machine’s performance and independent analysis.

Technical data

Model

P2-2120

P2-2225

P2-2520

Maximum length of incoming sheet (mm)

2495

2815

2795

Maximum width of incoming sheet (mm)

1600

1524

1600

Maximum diagonal that can be rotated (mm)

2500

2820

2800

Maximum bending force (kN)

330

590

660

Maximum clamping force (kN)

530

635

1060

Maximum bending length (mm)

2180

2200

2500

Maximum bending height (mm)

203

254

203

Minimum thickness (mm)

0.4

0.5

0.5

Maximum thickness and bending angle steel, UTS 410 N/mm2 (mm)

3.2 (±90°)
2.5 (±120°)
2.1 (±135°)

3.2 (±90°)
2.5 (±130°)
2.1 (±135°)

3.2 (±90°)
2.5 (±120°)
2.1 (±135°)

Maximum thickness and bending angle stainless steel, UTS 660 N/mm2 (mm)

2.5 (±90°)
2.1 (±120°)
1.6 (±130°)

2.5 (±90°)
2.1 (±125°)
1.6 (±135°)

2.5 (±90°)
2.1 (±125°)
1.6 (±135°)

Maximum thickness and bending angle aluminium, UTS 265 N/mm2 (mm)

4.0 (±120°)
3.5 (±130°)

4.0 (±120°)
3.5 (±130°)
3.0 (±135°)

4.0 (±120°)
3.5 (±130°)
3.0 (±135°)

Average consumption (kW)

3.0

4.0

5.0

Noise level (Machine Directive 2006/42/EC) (dB)

68

68

68

Values refer to a standard machine. Salvagnini reserves the right to modify this data without warning.
