Product overview

The P4 uses universal bending tools which automatically adapt in-cycle to the panel geometry, without machine down times or manual retooling, allowing batch-one or kit productions.

The technical solutions adopted (Direct Drive and pneumatic and electric actuators) allow the P4 to respect both people and the environment without reducing its productivity.

The integrated adaptive technologies (advanced sensors, bending formula, MAC3.0) make the system intelligent and able to automatically adapt to changes in the material and the external environment, eliminating waste and corrections, and extending the range of products that can be made.

The proprietary LINKS, STREAM and OPS softwares establish communication between the system and the company departments involved in the production flow.

The P4 offers customized solutions, including auxiliary tools and additional devices for special geometries or different loading/ unloading solutions.

 Flexible automation
 Sustainable technology
 Adaptive system
 Connectivity 4.0
 Production versatility
  • How does it work?

    Upper and lower blade, counterblade and blankholder are the four universal tools used to process the whole range of thicknesses and machinable materials, from 0.4 to 3.2 mm, during the cycle and without machine down times or manual re-tooling.

  • Operating mode: simple, quick and lean

    Bending on each side of the sheet is achieved thanks to the controlled interpolated movements of the blades.

  • Controlled centering

    The sheet metal is centered, just once at the start of the process, against controlled mechanical stops: the cycle time is minimized and any precision errors are all absorbed by the first bend. The mechanical stops are a further guarantee of finished panels of the correct size, every time.

  • Proprietary bending formula

    Developed over the years, the bending formula defines the force and manages the movements of the universal tools, analyzing different parameters in real time, including deflections, temperature and thickness, guaranteeing the precision, repeatability and quality of the finished product.

  • CLA tools

    Optional, auxiliary blades, modular in length, available in both positive and negative versions, for making upward or downward tabs or bends that are shorter than the whole sheet length.

  • CUT

    Optional combination of a specific P tool and an auxiliary blade for automatic and sequential cutting of profiles of different lengths, materials, shapes and thicknesses. An unloading belt device on the bladeholder is used for manual unloading.

  • RP option

    Optional combination of a mover device, a specific P tool  and an auxiliary blade for automatic and sequential cutting of profiles of different lengths, materials, shapes and thicknesses. An unloading belt device on the bladeholder is used for manual unloading.

  • DPM manipulator

    Optional suction-cup device used to handle narrow parts, or frames without material, minimum width 105 mm. Used together with the specific P tool, it can produce panels up to 45 mm wide.

1 /

FACE

Intelligent design, intuitive and easy-to-use: FACE is the Salvagnini human-machine interface for the whole product range.

MAC3.0

MAC3.0 detects any differences in the mechanical characteristics of the material compared to their nominal value during the cycle, adapting the movements of the bending unit and the manipulator to compensate them.

Industry 4.0

Digital transformation and Industry 4.0 are key topics for staying competitive on the market. When adopted, they can implement and manage complex, integrated, highly automated high-performance systems, and can help to develop simple solutions that require no structural changes to the production layout, making the world of smart manufacturing much more accessible.

P-Robot

P-Robot is a new application combining a Salvagnini panel bender with a robot to produce kits, batches, and single parts autonomously.

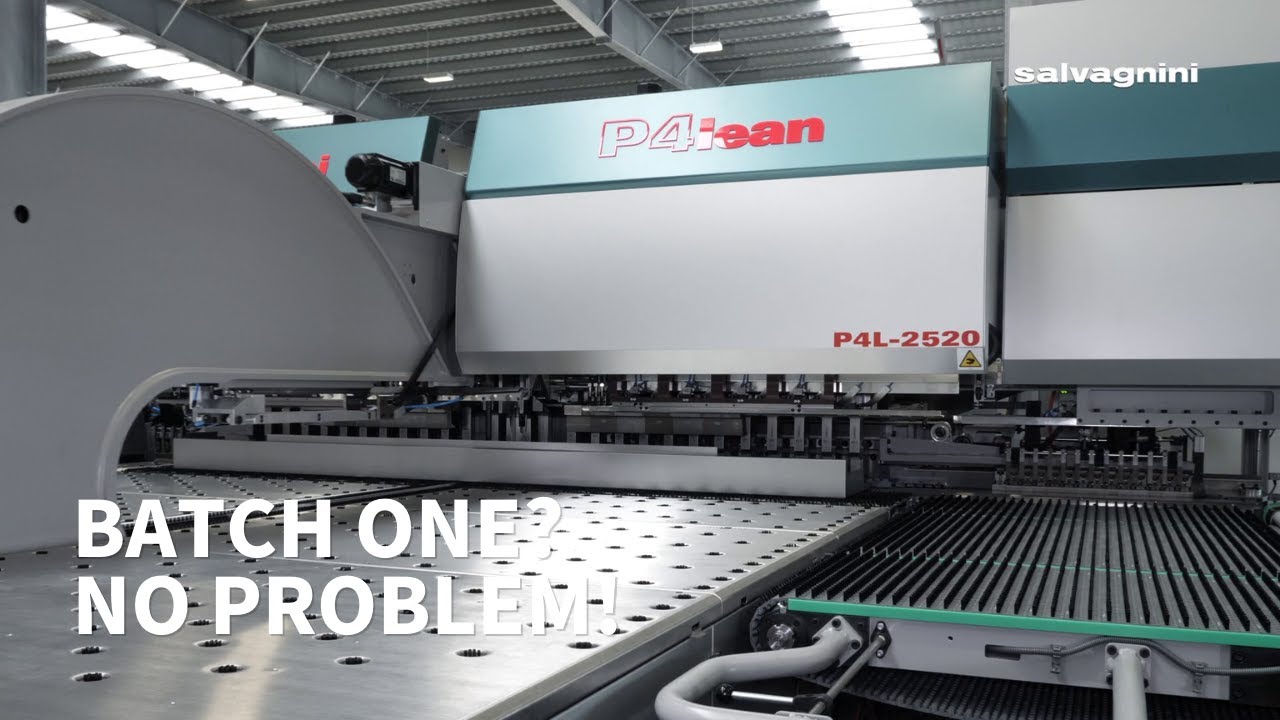

  • Batch one?

    No problem

    The P4 panel bender is equipped with universal bending tools which automatically adapt in-cycle to the panel geometry, without machine downtimes or manual re-tooling, allowing batch-one or kit productions and processing the whole range of thicknesses and machinable materials, from 0.4 to 3.2 mm.

  • Automotive part

    Find out how Salvagnini P4 bends galvanized steel automotive parts 0.75mm thick in less than 50 seconds.

  • Door

    Find out how Salvagnini P4 bends galvanized steel doors 1.5mm thick in less than 60 seconds.

  • Facade part

    Find out how Salvagnini P4 bends galvanized steel modular facade parts 0.75mm thick in less than 20 seconds.

  • Small part, large part seamless production

    Find out how easily Salvagnini P4 can seamlessly switch from small part production to large part production thanks to the universal bending tools which automatically adapt in-cycle to the panel geometry, without machine downtimes or manual re-tooling.

  • Elevator part

    Find out how Salvagnini P4 bends galvanized steel elevators parts 0.75mm thick in less than 25 seconds.

  • Refrigerator part

    Find out how Salvagnini P4 bends mild steel refrigerator parts 2mm thick in less than 40 seconds.

  • Case study: umdasch

    umdasch The Store Makers bought a stand-alone P4-2116 Salvagnini panel bender, equipped with a PCD conveyor/destacker and a RIP turnover device.

  • Case study: Fural

    Salvagnini P4 panel benders helped Fural reduce manual bending time by 50% and increase flexibility.

  • Case study: Fröling

    Fröling, Austrian wood-heating technology manufacturer, optimized the repeatability of its parts, improved its precision and quality parameters, minimized its set-up times, and sped up its production by almost 5 times thanks to the Salvagnini P4 panel bender.

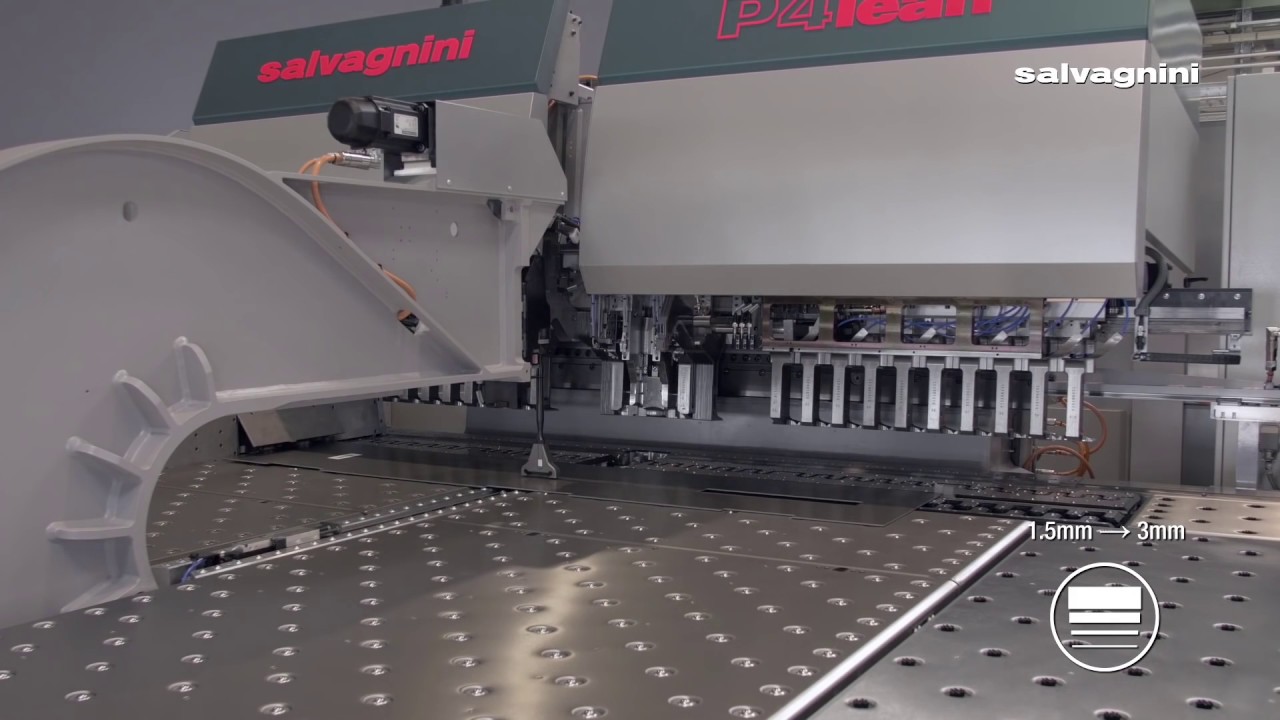

  • Heavy gage?
    No problem

    The P4 panel bender is equipped with universal bending tools which automatically adapt in-cycle to the panel geometry, without machine downtimes or manual re-tooling, allowing batch-one or kit productions and processing the whole range of thicknesses and machinable materials, from 0.4 to 3.2 mm.

1 /

Made-to-measure modularity

P4 can be fed manually or automatically, picking the sheets up from one or more sheet metal packs and feeding the machine in masked time. P4 can also be equipped with different unloading devices, manual or robotized.

Intelligent system, constant quality

Practically everything you ever wanted to know about the P4 panel bender, satisfactorily explained.

Productivity
Adaptivity
Precision

Conventional bending is characterized by an average OEE of 30%, with flexibility dependent on the tool change system - which is often costly and more time-consuming than on a panel bender - or on the installation of more than one press brake. The P4 panel bender, on the other hand, natively combines productivity, with its automatic bending and handling cycles, and flexibility, with its universal bending tools. And with its advanced cycles, the P4 completes an average of 17 bends per minute.

The P4 panel bender doesn’t need re-tooling: the upper and lower blades, the counterblade and the blankholder are universal tools that are able to process the whole range of thicknesses and machinable materials.

With its 6 models available, Salvagnini offers the widest range of panel benders on the market today. Each of these models can be configured and customized with many options, to respond to many different production needs. After a feasibility study made on the key parts to be produced, Salvagnini can drive each customer in the choice of the most suitable panel bender, according to variables including production strategies, field of application, level of automation required for loading and unloading semifinished parts, options for achieving full versatility and, if necessary, types of auxiliary technologies such as cutting, punching and press bending, allowing the panel bender to express its productivity to the full

The P4 is equipped with an automatic blankholder, which automatically adapts the length of the tool according to the size of the part to be produced, without the need for machine downtime or manual re-tooling even in-cycle: the ideal solution for batch-one and kit production.

MAC3.0 is the set of integrated technologies – sensors, formulas and algorithms – that make the panel bender intelligent: it eliminates waste and reduces corrections, measuring in-cycle and automatically compensating any variability in the material being machined.

Each P4 panel bender integrates advanced sensors that measure the material thickness and the real size of the blank, and detects any deformations caused by variations in temperature. The data are fed in real time into the bending formula, which defines the correct force to apply to the sheet metal, guaranteeing the precision, repeatability and quality of the finished product.

In addition to the automatic blankholder, the P4 offers a range of options to guarantee maximum versatility and adaptability, to suit any production strategy or mix.

P4 is the ideal bending solution for flexible line or cell production. It can be equipped with proprietary OPS software, which ensures communication between the panel bender and the factory ERP: depending on needs, OPS manages the production of sequences of different parts. Universal bending tools, automatic in-cycle set-up and automatic handling allow the system to respond to any requests immediately.

The sheet metal is centered, just once at the start of the process, against controlled reference stops: this minimizes the cycle time as well as any precision errors, which are all absorbed by the first bend. The bending formula automatically optimizes the bending parameters to reduce waste, while MAC3.0 detects and automatically compensates any variability in the material to guarantee precise, high-quality bends.

Software

Industry has changed: flexibility and efficiency are fundamental requirements for managing increasingly smaller batches or rapid item turnover rate.  And developments in technology have in some way upset the balance between workloads, with increasingly fast systems which however need to be guided by more and more specific machine programs, the generation of which is increasingly time-consuming. This is why software is increasingly crucial to improving the efficiency of machinery.

STREAM is Salvagnini’s answer to the modern industrial context, a programming suite that improves reactivity and reduces costs, operating errors and process inefficiencies.

OPS is the Salvagnini modular production management software which optimizes the entire production process, exchanging real-time information between the machinery and the factory ERP/MRP.

Salvagnini’s IoT solution, increases the global efficiency of the panel bender. LINKS allows real-time monitoring of the machine’s performance and independent analysis.

Technical data

Model

P4-2120

P4-2225

P4-2520

Maximum length of incoming sheet (mm)

2495

2815

2795

Maximum width of incoming sheet (mm)

1524

1524

1600

Maximum diagonal that can be rotated (mm)

2500

2820

2800

Maximum bending force (kN)

330

590

660

Maximum clamping force (kN)

530

635

1060

Maximum bending length (mm)

2180

2200

2500

Maximum bending height (mm)

203

254

203

Minimum thickness (mm)

0.4

0.5

0.5

Maximum thickness and bending angle steel, UTS 410 N/mm2 (mm)

3.2 (±90°)
2.5 (±120°)
2.1 (±135°)

3.2 (±90°)
2.5 (±130°)
2.1 (±135°)

3.2 (±90°)
2.5 (±120°)
2.1 (±135°)

Maximum thickness and bending angle stainless steel, UTS 660 N/mm2 (mm)

2.5 (±90°)
2.1 (±120°)
1.6 (±130°)

2.5 (±90°)
2.1 (±125°)
1.6 (±135°)

2.5 (±90°)
2.1 (±125°)
1.6 (±135°)

Maximum thickness and bending angle aluminium, UTS 265 N/mm2 (mm)

4.0 (±120°)
3.5 (±130°)

4.0 (±120°)
3.5 (±130°)
3.0 (±135°)

4.0 (±120°)
3.5 (±130°)
3.0 (±135°)

Model

P4-3125

P4-3220

P4-4020

Maximum length of incoming sheet (mm)

3495

3850

4000

Maximum width of incoming sheet (mm)

1524

1524

1524

Maximum diagonal that can be rotated (mm)

3500

4000

4050

Maximum bending force (kN)

625

660

660

Maximum clamping force (kN)

825

1060

1060

Maximum bending length (mm)

3100

3200

400-3200
3200-3850
3850-4000

Maximum bending height (mm)

254

203

203

Minimum thickness (mm)

0.5

0.5

0.5

Maximum thickness and bending angle steel, UTS 410 N/mm2 (mm)

3.2 (±90°)
2.5 (±120°)
2.1 (±135°)

3.2 (±90°)
2.5 (±130°)
2.1 (±135°)

3.2 (±90°)
2.5 (±120°)
2.1 (±135°)

Maximum thickness and bending angle stainless steel, UTS 660 N/mm2 (mm)

2.5 (±90°)
2.1 (±120°)
1.6 (±130°)

2.5 (±90°)
2.1 (±125°)
1.6 (±135°)

2.5 (±90°)
2.1 (±125°)
1.6 (±135°)

Maximum thickness and bending angle aluminium, UTS 265 N/mm2 (mm)

4.0 (±120°)
3.5 (±130°)
3.0 (±135°)

4.0 (±120°)
3.5 (±130°)
3.0 (±135°)

4.0 (±120°)
3.5 (±130°)
3.0 (±135°)

Values refer to a standard machine. Salvagnini reserves the right to modify this data without warning.
